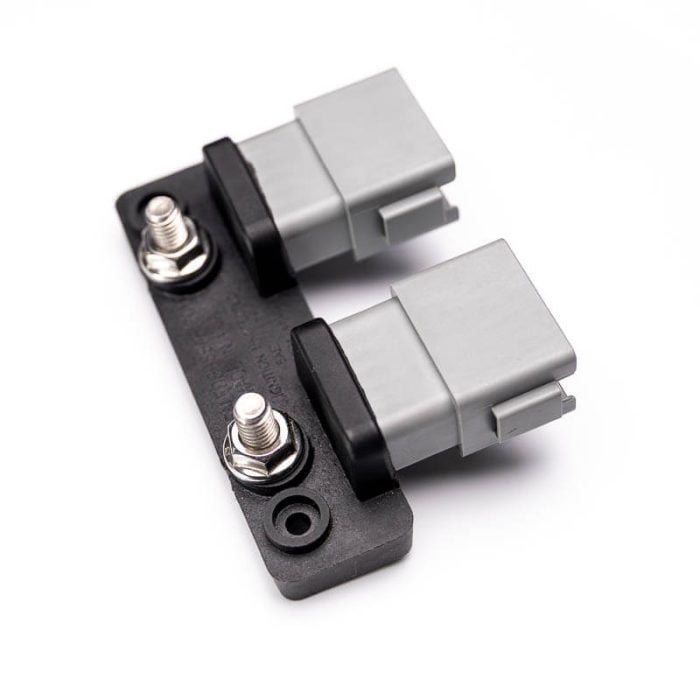

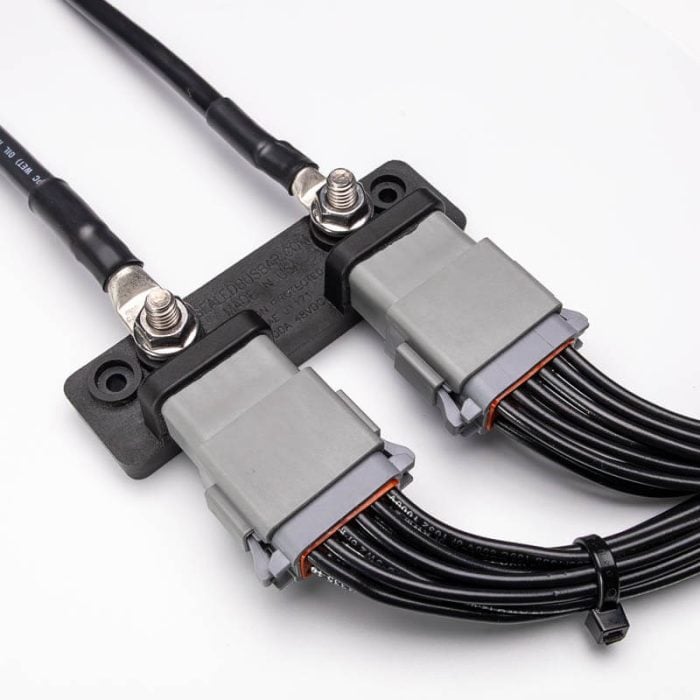

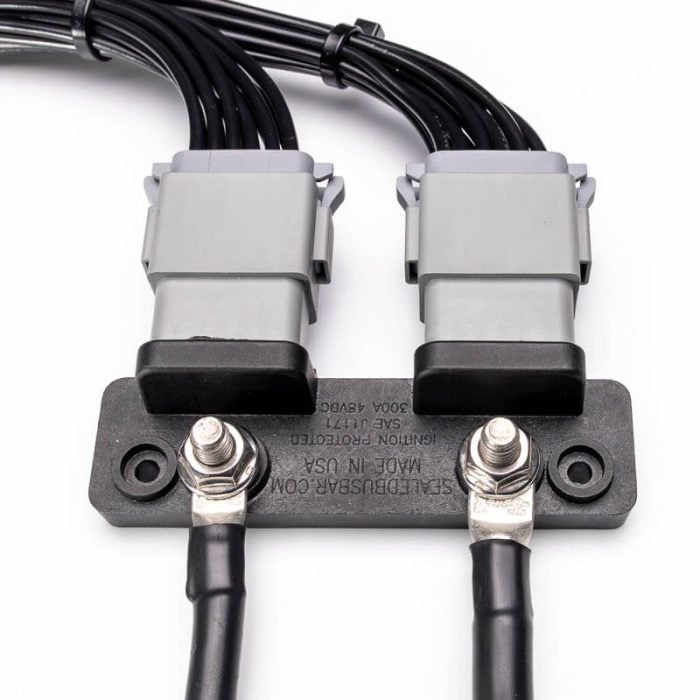

Product Description Dual Sealed Bus Bar Kit, IP67 Waterproof Struggling with bulky bus bars in tight spaces? Tired of corrosion causing electrical issues? The Dual Sealed DT Bus Bar Kit is the solution you’ve been looking for! Built with two 12 terminal DT connectors (24 sealed conductors total), it’s rated for 300A total (13A max per size 16 contact). The same popular single DT (13A per conductor) Sealed BusBar Kit but with two connectors! Includes (2) 5/16″ studs, on a sealed C1100 Electrolytic copper base plate. All terminals are bussed together (they are not isolated left and right side). DT connectors allow from 16AWG to 20AWG conductors to be used. Order as a standalone, or paired as a kit with enough parts needed for most applications. DTP Sealed Bus Bar Kit Includes: (1) Dual DT Sealed Bus Bar (2) Mating AT06-12SA Connector (2) Required AW12S Wedgelocks (28) AT62-201-16141 (for 16 to 20 AWG wire) (12) Blank Plug Seals Order as a kit, or use links above to order separately the specific parts you need. You may also find useful, our terminals and connectors category, or connect your new Sealed BusBar to your battery using our quality custom build battery cables. DTP Sealed Bus Bar Specs: Max Total Current Rating: 300A Sealed Connections: 24 Sealed Connection Contact Size: Size 16 (13A rated) Unsealed Connections: (2) 5/16″ Studs Width: 2.75″ Length: 4.625″ Height: 1.375″
