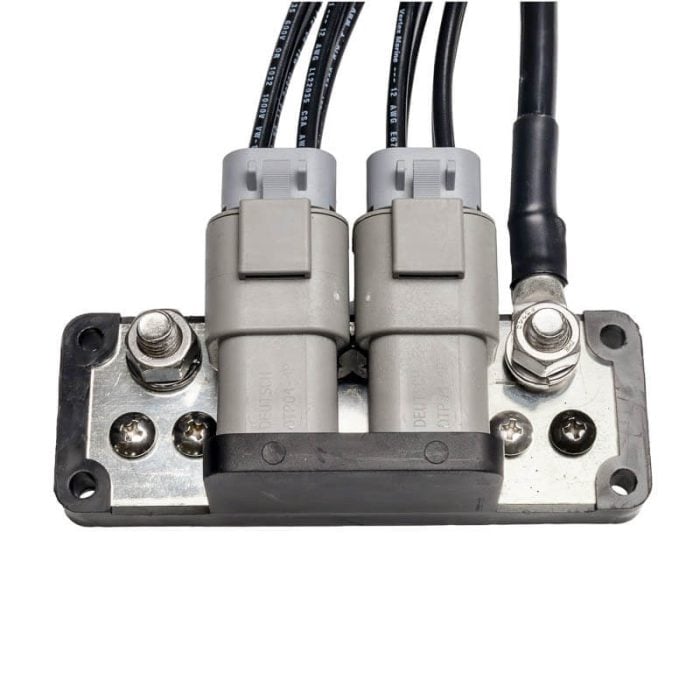

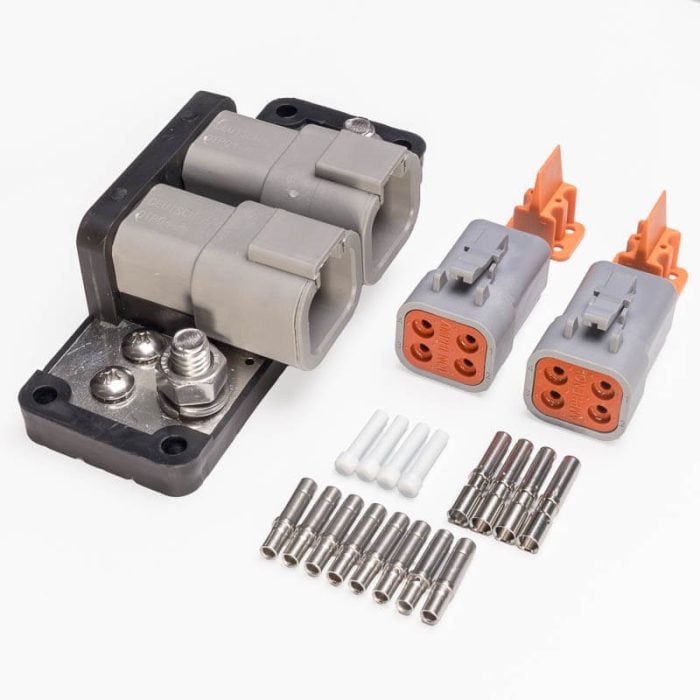

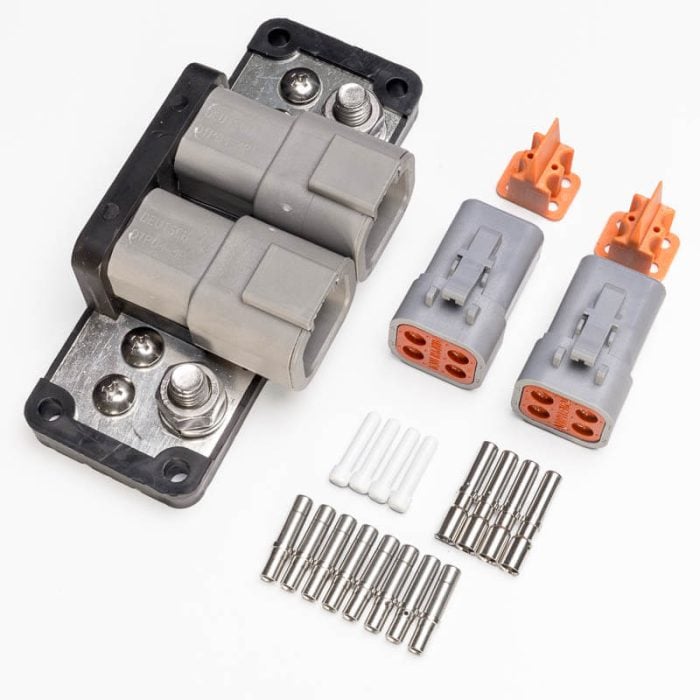

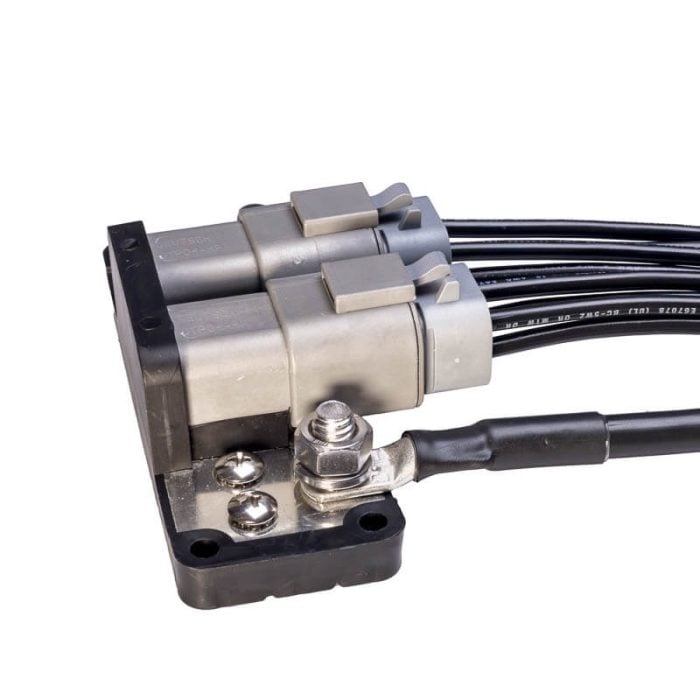

Product Description Dual Sealed DTP Bus Bar Kit, IP68 waterproof Struggling with bulky bus bars in tight spaces? Tired of corrosion causing electrical issues? The Dual Sealed DTP Bus Bar Kit is the solution you’ve been looking for! Built with two 4 terminal DTP connectors (8 sealed conductors total), it’s rated for 200A total (25A max per size 12 contact). The big brother to our popular DT (13A per conductor) Sealed BusBar Kit. Also includes (2) 5/16″ studs, and (4) #10 screws on the tin plated copper base plate. All terminals within and outside the connectors are bussed together (they are not isolated left and right side). DTP connectors allow from 14AWG to 10AWG conductors to be used (choose appropriate sockets based on your wire size). Order as a standalone, or paired as a kit with enough parts needed for most applications. DTP Sealed Bus Bar Kit Includes: (1) Dual DTP Sealed Bus Bar (2) Mating ATP06-4S Connectors (2) Required ATP06-4S Wedgelocks (8) AT62-203-12141, Size 12, 14-12AWG Solid Sockets (4) AT62-203-12141-10, Size 12, 12-10AWG Solid Solid Sockets (4) Blank Plug Seals Order as a kit, or use links above to order separately the specific parts you need. You may also find useful, our terminals and connectors category, or connect your new Sealed BusBar to your battery using our quality custom build battery cables. DTP Sealed Bus Bar Specs: Max Total Current Rating: 200A Sealed Connections: 8 Sealed Connection Contact Size: Size 12 (25A rated) Unsealed Connections: (2) 5/16″ Studs, (4) #10 Screw Terminals Width: 2.0625″ Length: 4.4375″
