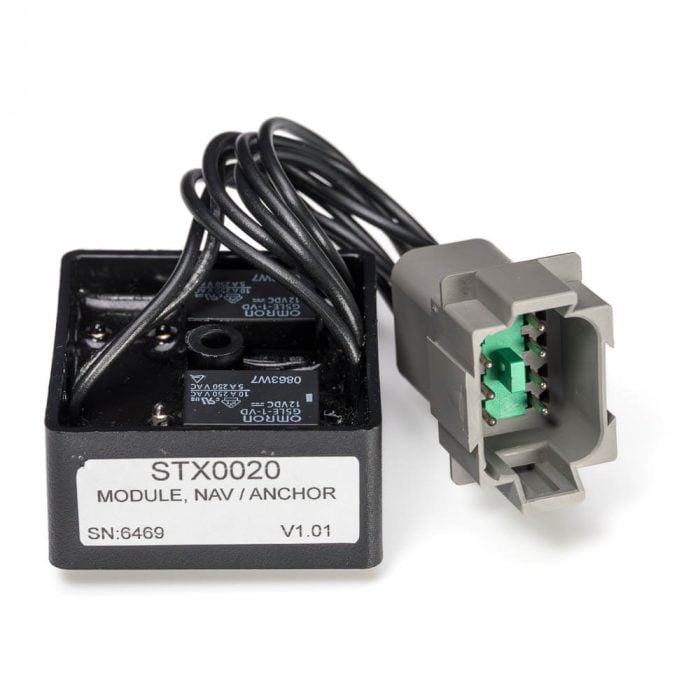

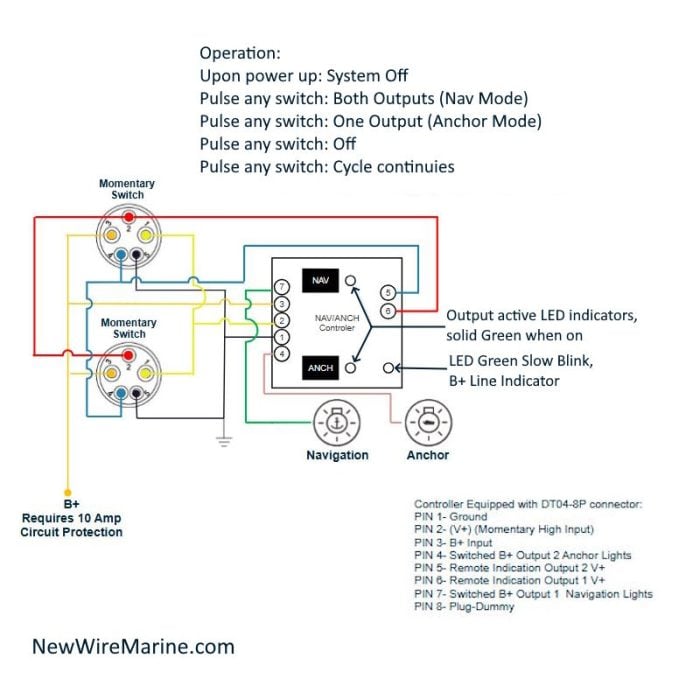

Product Description Dual or Multi Station Navigation / Anchor Light Controller �� Problem This Solves: You need to control your navigation and anchor lights from multiple locations, but traditional switches won’t work. (A standard 3-way switch setup won’t allow Nav & Anchor lights to toggle correctly—this module fixes that.) Take full control of your boat’s navigation and anchor lights from multiple locations with this marine-grade, sealed controller. Designed for dual-station operation, this module allows you to use momentary switches to toggle between: Navigation & Anchor Lights ON Anchor Light Only All Lights OFF Unlike traditional 3-way wiring setups, this controller eliminates the need for complicated switch configurations. You can install two or more momentary switches anywhere on your boat, allowing flexible control from multiple stations. Key Features: Multi-Location Control – Use two or more momentary switches to control your navigation and anchor lights. Simple Pulse-Based Switching – Each button press cycles through Nav & Anchor, Anchor Only, and Off. Marine-Grade Durability – Fully sealed and potted to withstand harsh marine environments. High Current Capacity – Rated for 13A total, 10A per circuit (13A max across both circuits). Compact & Easy to Install – Small 2″ x 2″ x 1″ module with a single center mounting hole. Plug & Play Connection – Uses an 8-pin AT04-08PA connector with 6 conductors on 4″ wire leads. Wiring Details: See wiring diagram in product images for details. Connector: AT04-8PA Mating Connector: AT06-08SA Mating Wedgelock: AW8S Mating pins (7 needed): AT62-201-16141 Mating Connector Dummy Plug (1 needed): A114017 Or cut off the connector and hard-wire according to the wiring diagram. Note, Remote indication pins low current (<100mA, meant for LED indicator only). Voltage Rating: 12Vdc nominal Current Rating: 13A Recommended fuse size: 10A
