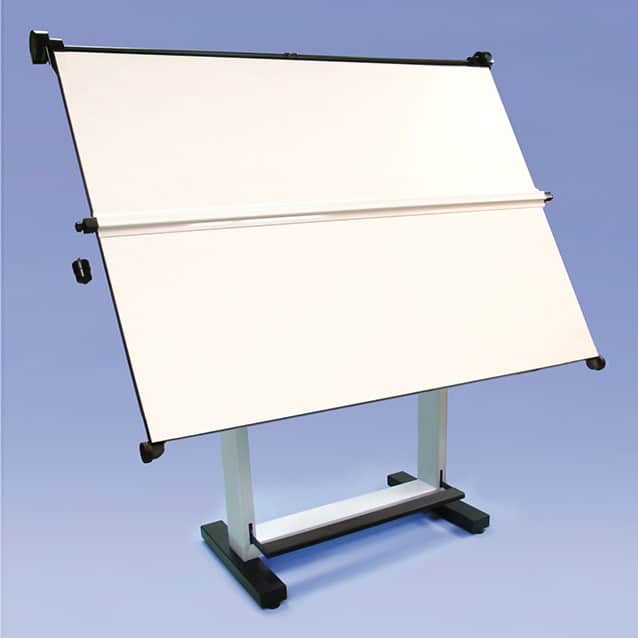

Description Art No: DU05 – 2A0 Denby Drawing Board with counter-sprung stand With a massive 1840 x 1270mm board surface, the 2A0 Denby drawing board was designed for specialist designers. The heavy duty counter spring stand makes light work of any adjustment. With a flick of the ankle the foot bar releases or locks the table position and also acts as an ergonomic foot rest. Foot operated angle adjustment The foot operated spring-assisted floor stand is fully adjustable and is able to lock the drafting table position at different heights and angles between horizontal and 80°. Its smooth action makes the adjustments effortless. Locking castors may be fitted if required. A0 Straight Edge The aluminium straight edge features a precision machined 15mm transparent acrylic blade. The straight edge runs the full width of the drawing board. The bottom of the straight edge is rebated which allows ink pens to be used without smudging. Specification Parallel Motion Type – Counter Weight Stand Colour – White Paper Size – 2A0 Board Size – 1750 x 1250mm Height & Angle adjustment Weight – 71kg Supplied fully assembled For A0 drawing boards click here.
