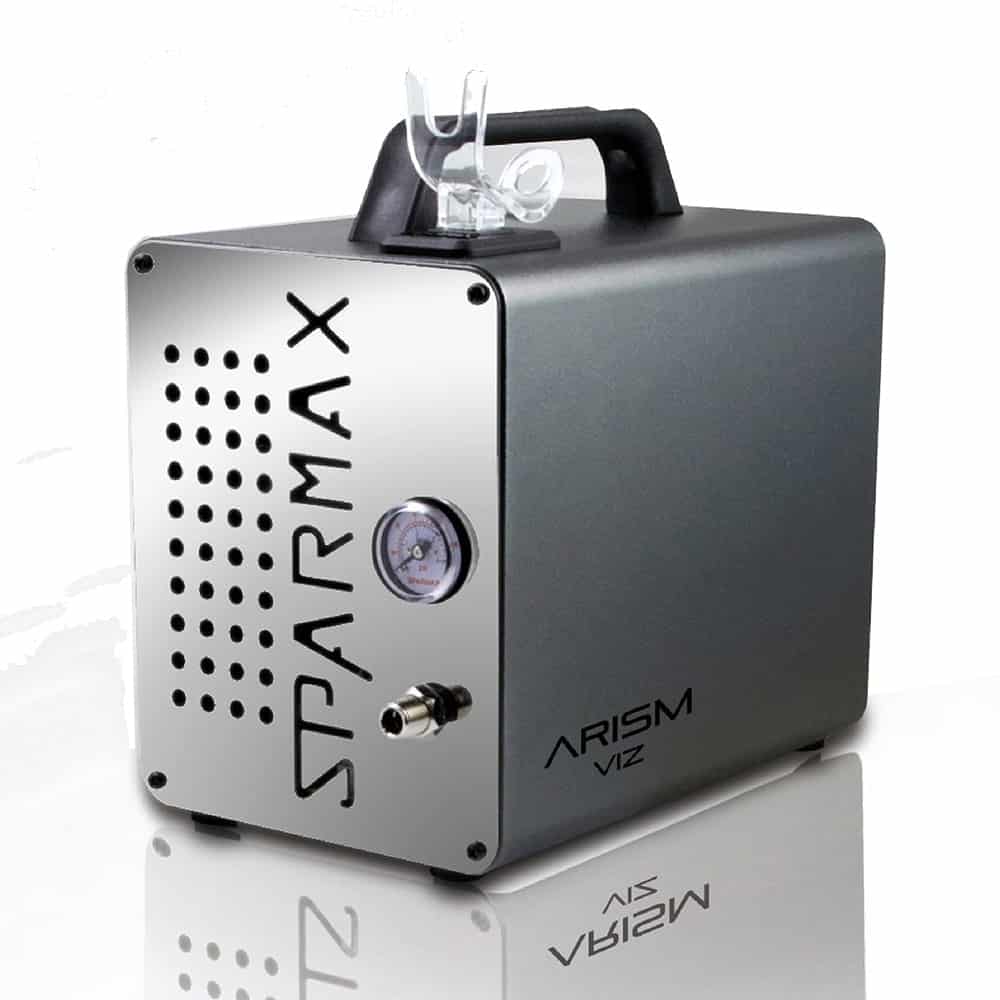

Description Part No: C-AR-VIZ – Sparmax ARISM Viz Compressor Sparmax ARISM Viz Compressor Smart-Stop feature pauses the compressor when you place the airbrush its holder, and restarts when you take it off, keeping the same working pressure before it paused. This makes the Arism Viz comparable to compressors with pressure stabilising air tank, but more compact and quieter. Smart-Stop offers the same experience whether you are using a single action or dual action airbrush. As an optional accessory, the ARISM Viz can also be run with standard Sparmax Battery Packs. A combined set including the Compressor, Battery and Charger is also available. Download Sparmax Arism Viz Manual The Sparmax ARISM Viz compressor features: Low maintenance, oil-less single piston Working pressure: 0 psi-50 psi (3.4 bar) Silver Bullet Plus moisture trap. 2M Braided hose. Airbrush holder. Pressure gauge. Air flow: 16 – 18 lpm (0.57 – 0.64 cfm) at open flow 1/8 BSP outlet on compressor. Size: L20 x W12 x H18 cm (7.9″ x 4.7″ x 7.1″) Weight: 2.5 kgs (5.5 lbs) Voltage: 220-240V 50Hz AC adapter: INPUT: 100-240V~47-63Hz 1.45A OUTPUT: 12V-5A max Noise level: 45±dB 1 94HJ E183744 I.T.E. Power supply Duty cycle: 40 minutes continuous use. After 40 minutes of continuous operation, pause or turn off the unit and let it cool for 10 to 15 minutes before resuming use. Compatibility: The Sparmax ARISM Viz compressor is suitable for these airbrushes and similar airbrushes, which have low air consumption. Sparmax SP35 / SP35C / MAX-3 / MAX-4 / GP-35 / GP-50 / HB-040 Neo for Iwata Iwata Revolution Iwata Eclipse BCS/BS/CS/SBS/SA Iwata HP / HP-Plus Iwata Hi-Line Iwata Custom Micron Iwata Kustom series (except K-TH) Paasche CC/F/Talon/V/VJR/VSR90/VV Badger 100 Badger 150/155/175/200 (except with HD head) Premi Air G35 Asturo C3 (from 8 to 24 psi)
