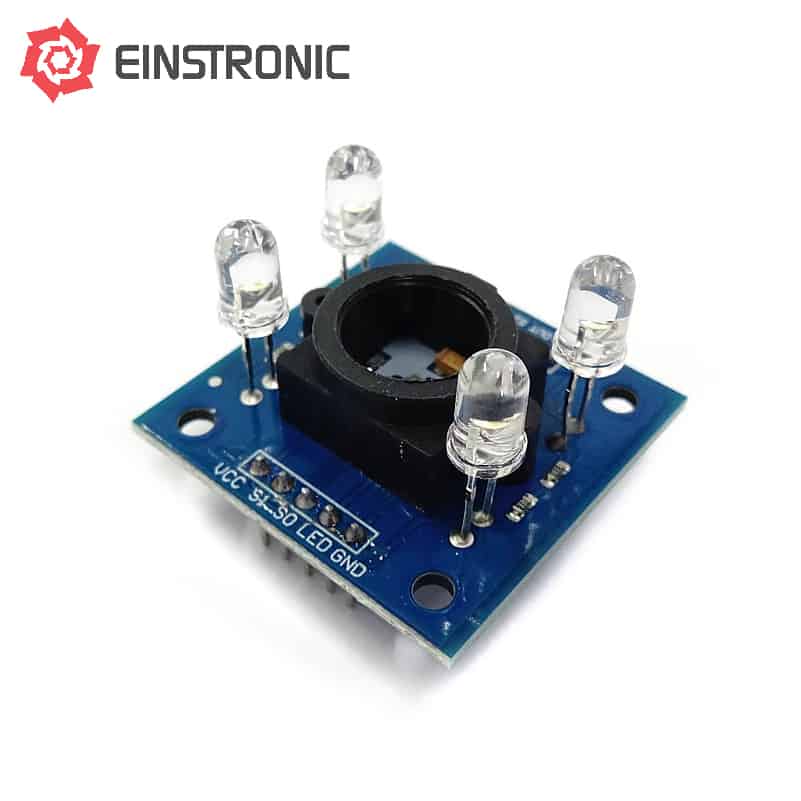

DescriptionThis module is based on the TCS3200 chip, an upgraded version of the TCS230, which is a programmable color light to frequency converter, making it ideal for adding color sensing capabilities to your new projectPlease refer to the tutorial below on how to use this module with Arduino (with code),Tutorial : Arduino Color Sensing Tutorial ? TCS230 TCS3200 Color Sensor – HowToMechatronics FeaturesOperating voltage : 3 – 5VOperating current : 25mAOutput type : FrequencyOutput frequency voltage : 0 – 5VHigh-Resolution Conversion of LightNonlinearity Error Typically 0.2% at 50 kHzStable 200 ppm/?C Temperature CoefficientUse bright white LED lightsStatic detection of the measured object colorDimension : 33.2 x 33.2? x 25 mm WiringLabelMeaningConnectionGNDGroundConnect to GND of systemLEDLED EnableConnect to any digital pinS0Output frequency scaling selection inputs.Connect to any digital pinS1Output frequency scaling selection inputs.Connect to any digital pinVCCPower sourceConnect to 3 – 5V of systemGNDGroundConnect to GND of systemOUTOutput frequencyConnect to any digital pinS2Photodiode type selection inputs.Connect to any digital pinS3Photodiode type selection inputs.Connect to any digital pinVCCPower sourceConnect to 3 – 5V of system Files & DocumentationDatasheet – TCS3200Schematic DiagramTutorial : Arduino Color Sensing Tutorial ? TCS230 TCS3200 Color Sensor – HowToMechatronics
